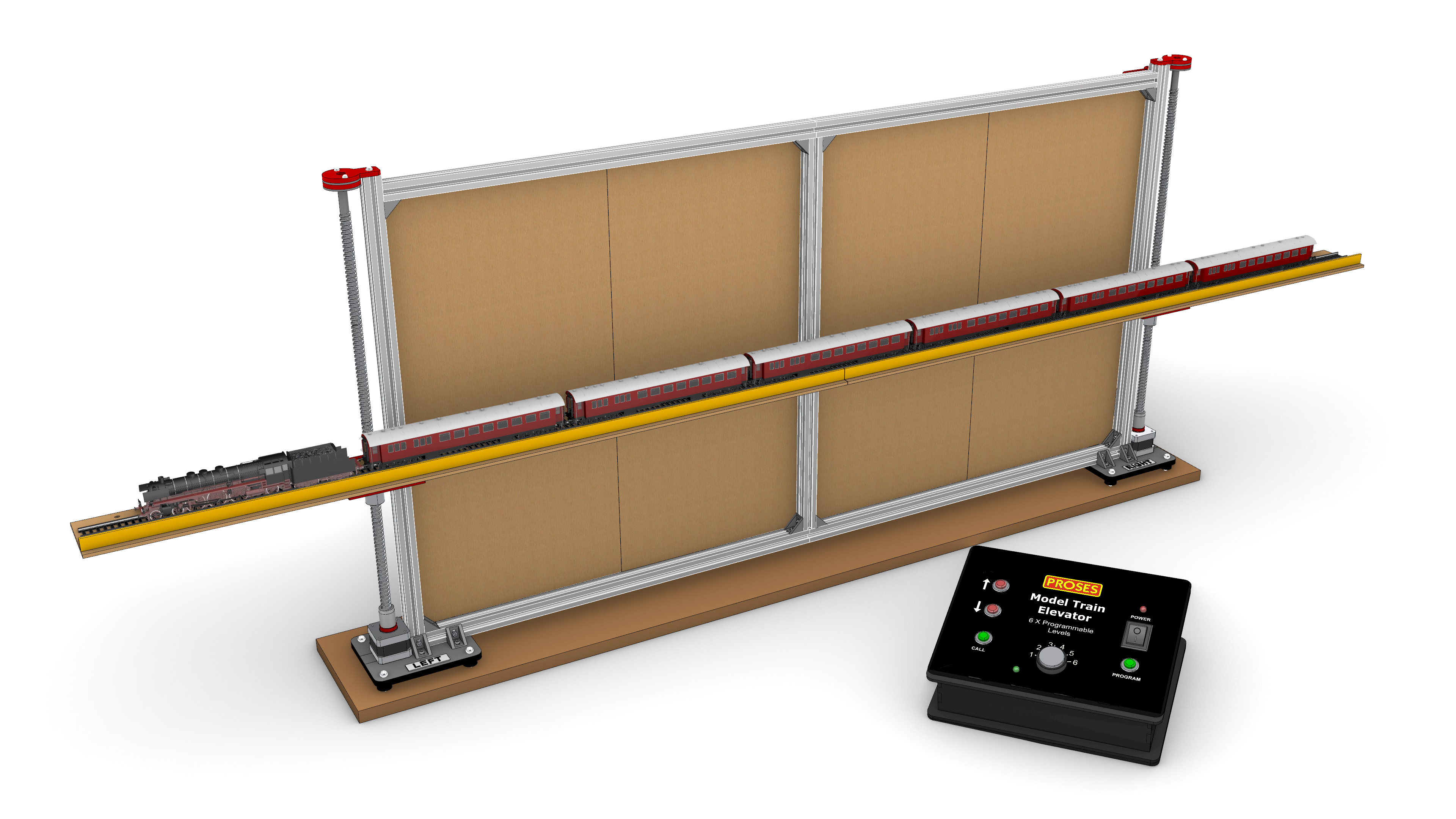

PTE-186 Model Train Elevator - 186 cm (73")

PTE-186 Model Train Elevator (6-Level)

Motorized Vertical Lift System – 186 cm (73") Platform for Z to HO/OO Scales

The PTE-186 by PROSES is a high-precision 6-level vertical train elevator designed to transport model trains smoothly and reliably between layout levels.

With its long 186 cm (73") platform, it can handle full-length train sets, making it ideal for modelers running longer passenger or freight trains. It supports layouts from Z scale up to HO/OO scale, depending on train configuration.

The PTE-186 provides a perfect solution where traditional helices or long ramps are not practical, allowing efficient vertical train storage and movement between layout levels.

For more compact installations, a shorter PTE-124 (124 cm / 49") version is also available.

---

Technical Specifications

Platform Length
186 cm (73 inches)

Compatible Scales
Z, N, TT, HO, OO or any scale that fits the platform size

Vertical Travel Distance
Approx. 420 mm (16.5 inches)

Unit Height
Approx. 600 mm (23.6 inches)

---

Lift Mechanism

• Dual high-torque stepper motor drive for precise synchronized motion
• Precision ball screws and ball nuts ensure smooth and stable vertical travel
• Designed for accurate positioning and repeatable operation

---

Control System

• Microcontroller-based controller with EEPROM memory
• Stores all programmed level positions permanently

---

Level Management

• Top and bottom positions controlled by mechanical limit switches
• Up to 6 intermediate levels are programmable and stored in memory

---

Operation Modes

Manual Mode
Up / Down buttons allow manual positioning during installation and adjustments.

Automatic Mode
Call buttons move the elevator automatically to any programmed level.

---

Safety Features

• Integrated limit switches
• Over-travel protection
• Controlled acceleration and deceleration for smooth movement

---

Construction

• Rigid aluminum frame construction
• Designed for long-term precision and durability
• Smooth and quiet operation

---

Power Requirement

12V DC regulated power supply
(12V power adapter included)

---

Applications

• Vertical access between multi-deck layouts
• Staging yard transitions
• Space-saving solution for modular and shelf-type layouts
• Ideal alternative where helices or long ramps are not possible

---

Customization Options

• PTE-124 version available for shorter trains (124 cm / 49")
• Custom lift heights and platform lengths available upon request

---

Physical Dimensions

Footprint
Approx. 1920 mm × 150 mm (75.6" × 5.9")

Unit Height
Approx. 600 mm (23.6")

---

With its dual stepper motor drive system, precision ball screws, and ball nuts, the PTE-186 ensures safe, quiet, and repeatable vertical train movement — trusted by model railroaders worldwide.

---

⚠️ Please allow approximately 15–20 days for shipping, as this item is manufactured to order.
