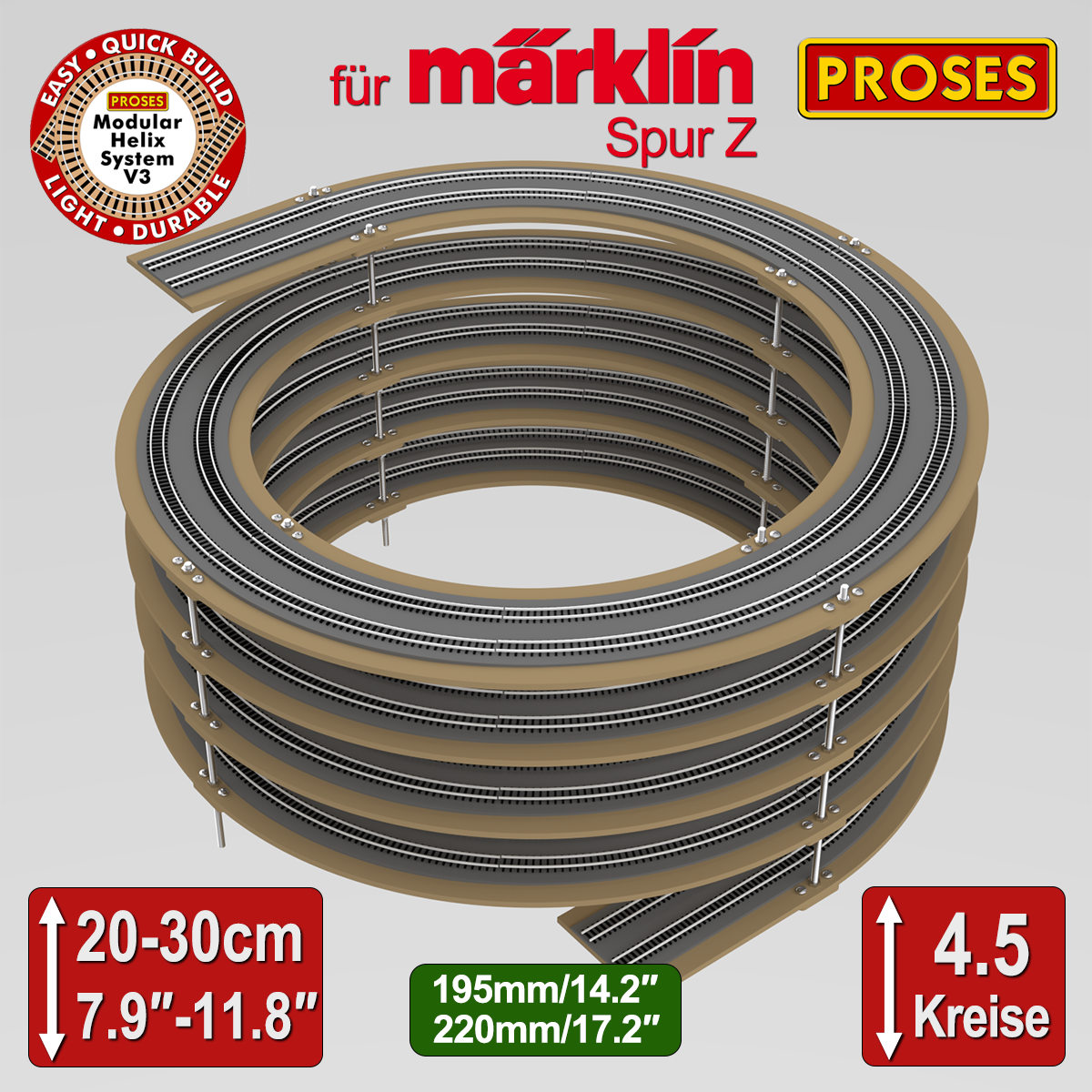

4.5 LEVEL HELIX for Marklin Z (R195 mm, 7.67" / R220 mm, 8.66")

PROSES 4.5 LEVEL HELIX for Märklin Z

R195 mm / 7.67" & R220 mm / 8.66"

Optimize your Z scale layout with the PROSES Modular Helix V3, designed for Märklin Z track using R195 mm and R220 mm radii.

This compact double-track, 4.5-level helix provides an efficient solution for gaining elevation in limited spaces while maintaining smooth and reliable train operation.

Key Features

• Modular Design: 4.5 levels with quick and easy assembly using adjustable threaded rods

• Designed for Märklin Z: Suitable for Märklin Z track using R195 mm and R220 mm radii, as well as compatible flexible tracks or other track systems matching these radii

• Double-Track Layout: Two separate tracks provide greater flexibility for multi-track layouts and different operating plans

• Compact Footprint: Perfect for Z scale layouts where space is limited

• Reliable Operation: Carefully designed for smooth elevation changes and dependable train movement

Dimensions & Technical Details

• Track Radius:
– Inner Track: 195 mm / 7.67"
– Outer Track: 220 mm / 8.66"

• Number of Levels: 4.5
• Vertical Clearance Between Levels: 4-5 cm / 1.5- 2"
• Total Height: Approx. 25 cm / 9.8"
• Overall Width: Approx. 50 cm / 19.7"

Gradient

• Inner Track Gradient: Approx. 3-4%
• Outer Track Gradient: Approx. 2.5-3%

These gradients are suitable for compact Z scale operation and allow the helix to provide a useful elevation gain within a very small footprint.

Easy & Flexible Assembly

All PROSES helices can be assembled clockwise or anti-clockwise, allowing:

• Entry or exit from left or right
• Entry or exit from top or bottom

This flexibility makes the helix suitable for both permanent layouts and modular exhibition layouts.

Compatibility

Designed for Märklin Z scale track using R195 mm and R220 mm radii, and also compatible with suitable flexible tracks or other track systems matching these radii.

🚂 PROSES Modular Helix V3 – Easy • Quick Build • Light • Durable
