MTE-280 Model Train Elevator - Upper-Level Storage

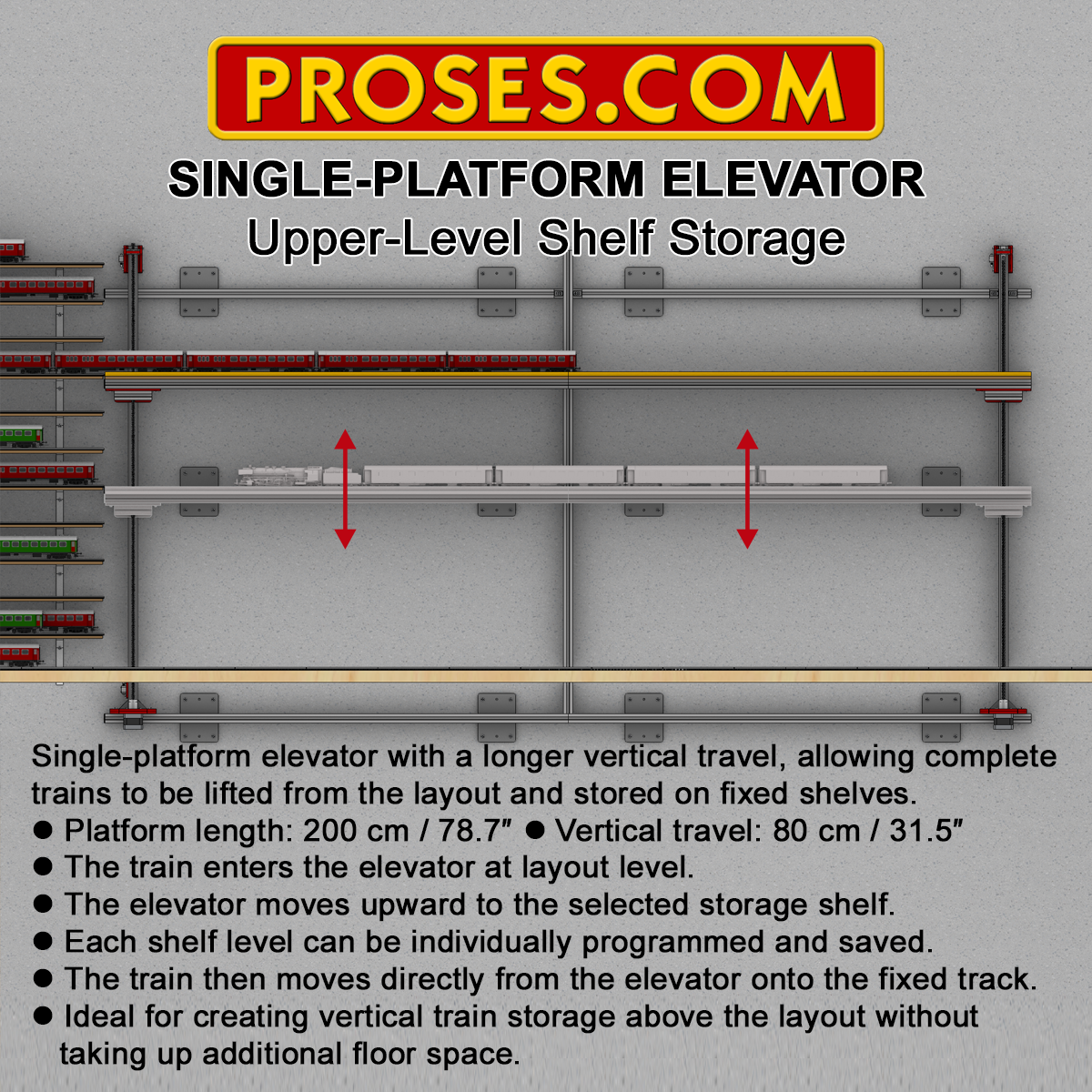

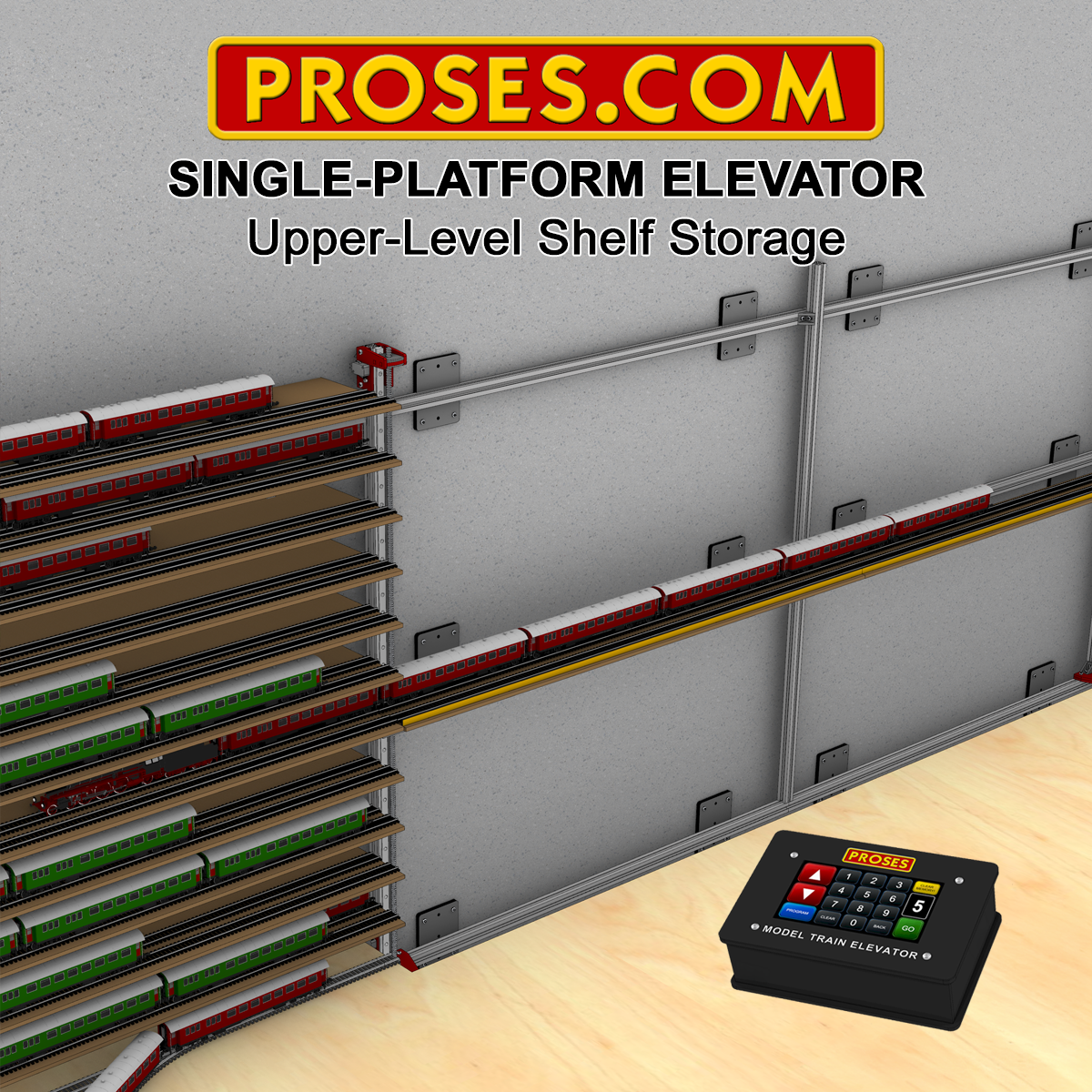

The PROSES MTE-280 Single-Platform Model Train Elevator – Upper-Level Storage is designed to move complete trains from the main layout level to fixed storage shelves positioned above the layout.

The train enters the elevator directly from the layout. The platform then moves upward and aligns with the selected storage shelf, allowing the complete train to move directly onto the corresponding storage track.

This system makes excellent use of otherwise unused vertical wall space and provides an efficient way to store complete trains without handling locomotives and rolling stock by hand.

Suitable Scales

Available for:

Z / N / TT / HO / OO / S Scale

Custom dimensions can also be produced according to the scale, train length and layout requirements.

Standard Configuration

• Platform length: approx. 200 cm / 78.7″
• Vertical travel: approx. 80 cm / 31.5″
• Single moving platform
• Designed for complete train consists
• Direct connection between the layout level and upper storage shelves
• Multiple storage shelf levels can be programmed
• Smooth stepper-motor and lead-screw drive system
• Precise and repeatable positioning
• Upper and lower safety limit switches
• Custom sizes and configurations available

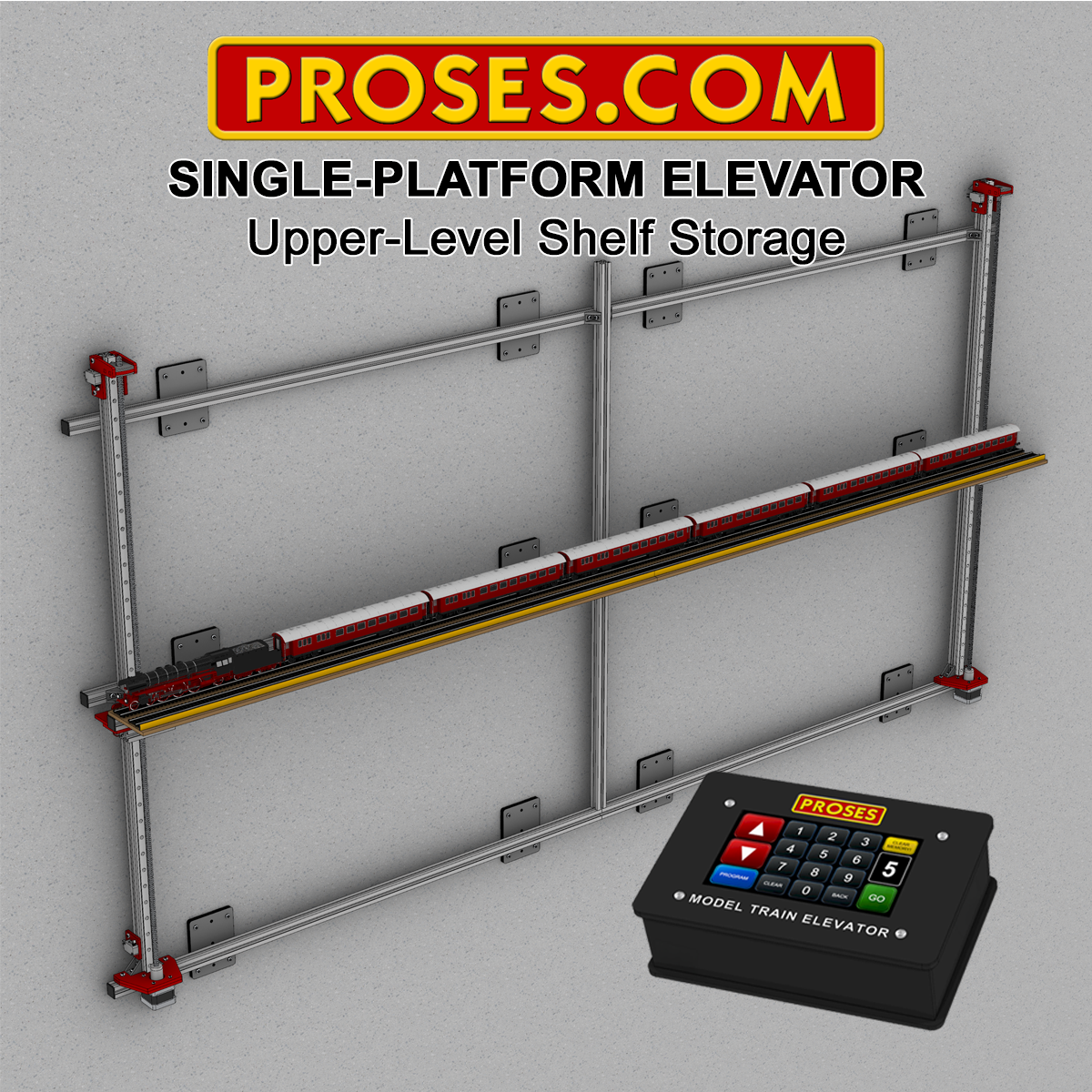

Touchscreen Controller

The elevator is operated through a dedicated touchscreen control unit, making it easy to select, program and fine-adjust each storage level.

• Multiple programmable stopping positions
• Automatic movement to the selected storage shelf
• Manual UP / DOWN control for fine positioning
• Soft-start manual movement for smoother and more precise adjustment
• Each shelf level can be individually programmed and stored
• Position memory is retained after the system is switched off
• Automatic homing at startup
• Safety limit protection
• Movement can be stopped from the controller during automatic operation
• The number of programmable storage positions can be configured according to the installation

How It Works

Layout Level → Train Enters Elevator → Elevator Moves Up → Selected Storage Shelf

The elevator aligns with the required storage track, allowing the train to move directly from the platform onto the fixed shelf.

The train remains on the track throughout the process, reducing handling and making complete train storage much easier.

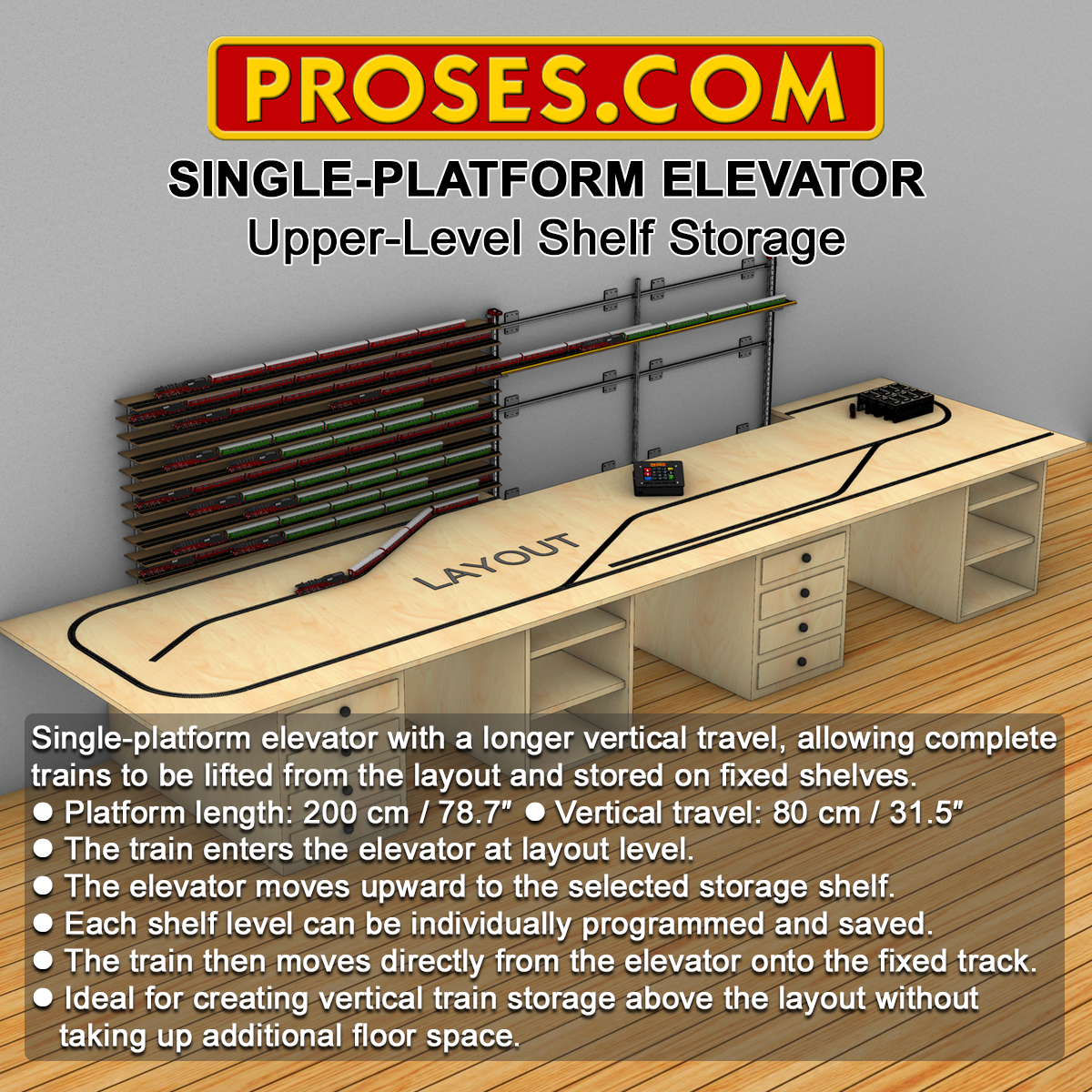

Vertical Storage Without Taking Up Layout Space

The main advantage of this system is that the storage shelves are positioned above the layout, making use of available wall space without increasing the footprint of the railway.

Several fixed storage shelves can be installed at different heights, with the elevator providing access to each one.

Custom Made for Your Layout

Every model railway installation is different, so the elevator can be produced with custom platform lengths, vertical travel distances, storage positions and scale-specific configurations to suit your layout.

CUSTOM SIZES AVAILABLE

From your layout straight to upper-level storage — without handling the train.

Made to Order – Approx. 2–3 Weeks Lead Time

Each elevator is prepared individually and shipped according to the order queue. Please allow approximately 2–3 weeks before shipment.
